27" Industrial TFT LCD FHD 350 cd/m2 Dual LVDS 89° Viewing Angle -20°C-60°C Storage Operating Temp. 0°C to 50°C

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFTO2700SM-7317AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : the lowest market price guaranteed

Payment Terms : PayPal, T/T, Western Union, Ali-Pay, WeChat Pay

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Screen Size : 27-inch Diagonal

Resolution : 1920×1080 Pixels (RGB Stripe)

Brightness : 350 cd/m²

Operating Temp. : 0°C to +50°C

Contrast Ratio : 1000:1 (Typ.)

Interface : Dual-Channel LVDS (2 Pixel/Clock)

Response Time : 14ms (on/off, Typ.)

Backlight : 30,000 hours

Surface Treatment : Anti-Glare, 3H Hardness

Power Input : 5V±10% (Max 5.5V)

Compliance : REACH & RoHS Compliant

Contact Now

Industrietaugliches 27-Zoll Display für Kontrollräume

Der SFTO2700SM-7317AN kombiniert Full-HD-Auflösung mit Industrierobustheit für Leitstände, Medizintechnik und Automatisierungssysteme. Mit 350 cd/m² Helligkeit und 89° Blickwinkel bietet er klare Visualisierung auch unter anspruchsvollen Lichtbedingungen.

Schlüsselvorteile für Ingenieure
✅ Industrielle Zuverlässigkeit

  • Betrieb bei 0°C bis 50°C (Lagerung -20°C~60°C)

  • Dual-LVDS-Schnittstelle mit 74.25MHz Taktfrequenz

  • 3H kratzfeste Anti-Reflex-Oberfläche

✅ Optische Excellence

  • 1000:1 Kontrastverhältnis für scharfe Graustufendarstellung

  • 14ms Reaktionszeit (Schwarz-Weiß-Übergang)

  • Farbkoordinaten nach CIE1931 (Weißpunkt x=0.283/y=0.289)

✅ Einfache Integration

  • Verriegelbarer JAE FI-X30HL-Stecker

  • DE-only Timing Mode (kein HSYNC/VSYNC benötigt)

  • VESA-kompatible Befestigungspunkte

  • Zertifizierte Robustheit

  • 72h Hochtemperaturtest @60°C

  • 24 Zyklen Thermischer Schock (-20°C↔60°C)

  • ESD-Schutz: ±8kV (Kontakt) nach IEC 61000-4-2

Industrieanwendungen

Prozessleittechnik: SCADA-Systeme, Leitwartendisplays
Medizingeräte: OP-Monitore, Diagnosekonsolen
Laborautomation: Mikroskopiemonitore, Analysegeräte
Digital Signage: Industrietaugliche Infotainment-Systeme

Konformität & Support

  • ISO-Zertifikate: 9001:2015 (Qualität), 14001:2015 (Umwelt)

  • EMV: EN 55032:2015 Konform

  • Garantie: 2 Jahre auf Funktionsdefekte

  • Lieferumfang: ESD-Schutzverpackung, Montagezeichnungen (DXF)

Request Customization

Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.

Specifications

Items Unit Specification
Screen Diagonal mm 27.0”
Active area mm 597.888(H) x 336.312(V)
Pixels H x V - 1920(x3) x 1080
Pixels Pitch um 31.14(per one triad) x31.14
Pixel Arrangement - R.G.B. Vertical Stripe
Display Mode - Normally Black
Response Time Msec 14ms (typ., on/off)
Weight Grams TBD
Electrical Interface - Dual channel LVDS,8 bits RGB data input
Support Color - 16.7M colors
Surface Treatment - Anti-Glare,3H
Operating Temperature ℃

0 to +50
Storage Temperature ℃ -20 to +60

External Dimensions

27" Industrial TFT LCD FHD 350 cd/m2 Dual LVDS 89° Viewing Angle -20°C-60°C Storage Operating Temp. 0°C to 50°C

Interface Pin Definition

Pin No. Symbol Description
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 BIST BIST
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Negative LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Ground
25 CTL CTL_DVR
26 CE CE_DVR
27 NC No connection
28 VDD Power Supply Input Voltage 5V
29 VDD Power Supply Input Voltage 5V
30 VDD Power Supply Input Voltage 5V

Optical Characteristics

Paramete Conditions Min. Typ. Max. Unit

Viewing Angle

(CR>10)

 Horizontal θL 89 -

degree
θR 89 -
Vertical θT 89 -
θB 89 -
Contrast Ratio Center 700 1000 - -
Response Time Tr+Td - 14 20 ms

CF Color Chromaticity

(CIE1931)

 Red x

Typ. -0.03

 0.646

Typ. +0.03

 -
Red y 0.341 -
Green x 0.327 -
Green y 0.612 -
Blue x 0.143 -
Blue y 0.041 -
White x 0.283 -
White y 0.289 -
Center Luminance of white YLI 300 350 cd/m2

Backlight Characteristics

Parameter Symbol Value Unit
MiN. Typ. Max.
Light Bar input Voltage VLED 51 54 57 V
Light Bar input Current ILED - 480 - mA
LED Life Time LBL 20000 30000 - Hrs

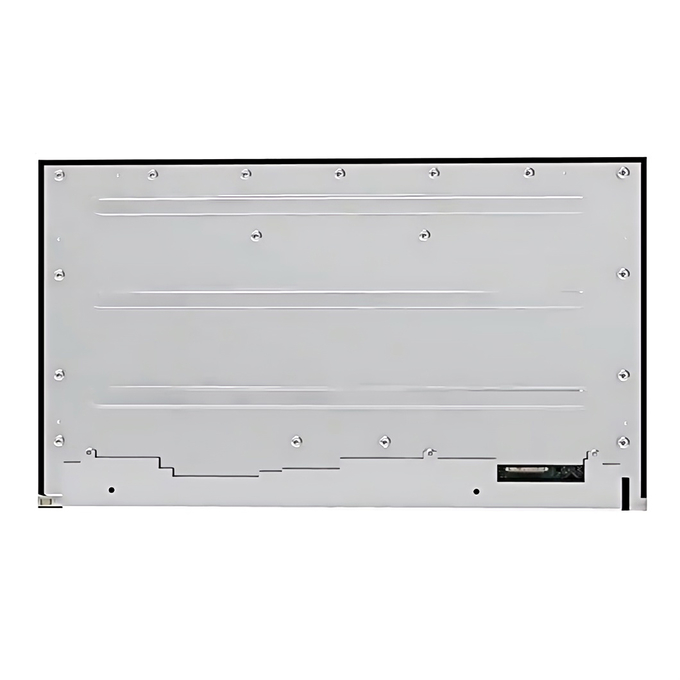

Product Image

27" Industrial TFT LCD FHD 350 cd/m2 Dual LVDS 89° Viewing Angle -20°C-60°C Storage Operating Temp. 0°C to 50°C

27" Industrial TFT LCD FHD 350 cd/m2 Dual LVDS 89° Viewing Angle -20°C-60°C Storage Operating Temp. 0°C to 50°C
